Chapter 2: Design Methods

2.1 Executable Principles and References

Effective underground parking surveillance design requires adherence to a set of actionable engineering principles that go beyond generic "best practices." Each principle below is directly tied to a specific failure mode observed in real deployments, and each has a clear application context and reference basis. Following these principles in sequence during the design phase prevents the most common and costly post-installation defects.

2.2 Failure Causes and Recommendations

The following table maps the most common failure patterns observed in underground parking surveillance deployments to their root mechanisms and actionable avoidance strategies. Understanding these failure chains during the design phase allows engineers to proactively specify the correct components, installation methods, and configuration parameters before problems occur in the field.

2.3 Core Design and Selection Logic

The design process follows a structured decision flow that begins with defining evidence objectives per zone and progresses through camera selection, coverage validation, network and storage sizing, reliability planning, security baseline, and acceptance test design. This sequential approach ensures that each downstream decision is grounded in the upstream evidence requirements rather than driven by product availability or budget alone.

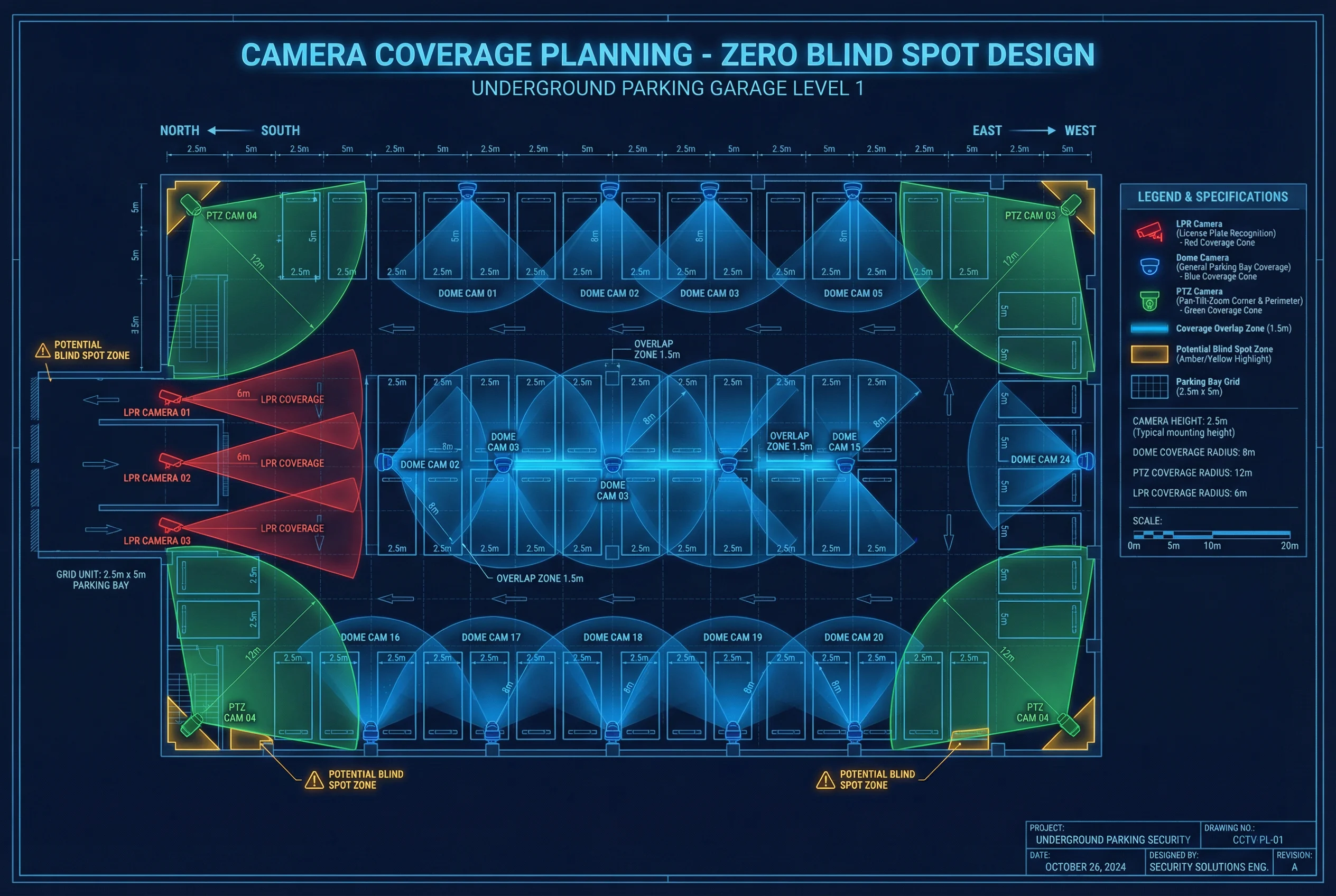

Figure 2.1: Camera Coverage Planning — Annotated Parking Floor Plan Showing Camera Positions, Fields of View, and Zone Assignments

Design Decision Steps

1. Define evidence classes per zone: Plate identification / Face recognition / Behavior analysis / Asset protection — each zone may require a different class
2. Set minimum pixels-on-target, maximum acceptable blur, and lighting extremes for each zone based on evidence class requirements
3. Choose camera type and optics: Select focal length, sensor size, WDR rating, and illuminator strategy based on zone geometry and lighting analysis
4. Build coverage map with overlap: Validate that no blind zone exceeds the defined tolerance (typically 2–3 m) using scaled floor plan drawings
5. Compute bandwidth and storage: Use the bandwidth and storage calculators to iterate bitrate, codec, GOP length, and retention settings
6. Define reliability scope: Determine UPS coverage, redundant uplinks, spare parts inventory, and failover behavior for each critical node
7. Define security baseline: Assign VLAN segmentation, ACL rules, credential policy, firmware update schedule, and logging requirements
8. Produce acceptance test plan: Include worst-case lighting tests (night drive-through with headlights), failure injection tests (uplink down, server failover), and integration event tests

Figure 2.2: Camera Selection Criteria — Left: Pixels-on-Target vs. Distance for Different Focal Lengths; Right: WDR Performance vs. Lighting Scenario

2.4 Key Design Dimensions

Every underground parking surveillance design must be evaluated across seven key dimensions. These dimensions represent the primary trade-off axes that engineers must balance when making specification and configuration decisions. Optimizing for one dimension without considering the others leads to predictable imbalances — for example, maximizing resolution without considering storage capacity results in premature retention failures.
